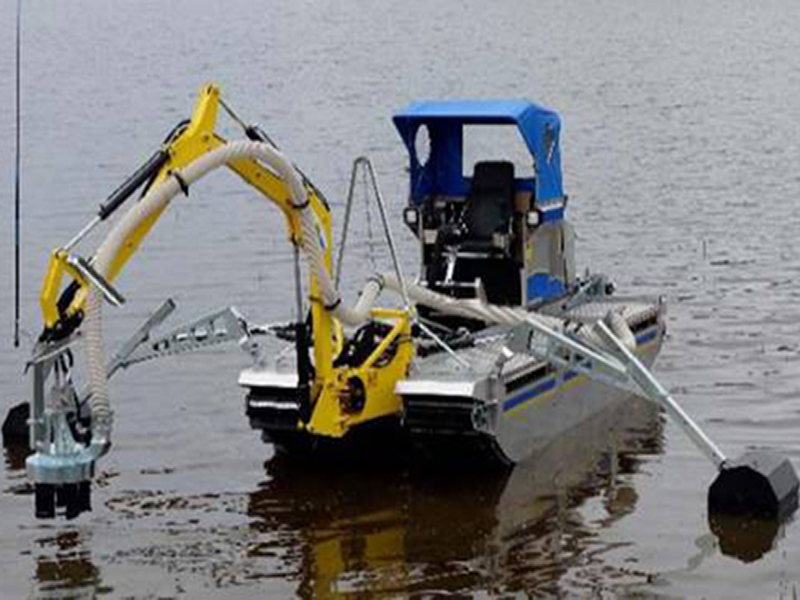

The HBXG brand multi-functional amphibious operation vehicle LC45 is mainly for the shallow water environmental protection market, and the applicable construction scope includes river dredging, river and lake reed harvesting, water grass harvesting, residual load cleaning, surface garbage salvage, dredging, and marsh construction.
The design of the floating tank crawler walking mechanism enables the equipment to walk on water while taking into account the sailing ability of the ship, but also reduces the weight of the equipment so that it has the ability to walk on the swamp land and reduce the specific pressure to the ground, so that the equipment is not limited by the terrain, and can be widely used in rivers, lakes, wetlands, swamps and other operating environments. The amphibious operation platform uses a variety of modular tools, has the advantages of easy assembly, one machine, multiple capabilities, and has the characteristics of strong mobility, high degree of automation, flexible operation, and high safety performance, which can effectively reduce manual labor intensity, improve personnel working efficiency, and ensure personnel safety. Amphibious operation platform provides advanced solutions for water environmental protection projects.
| Description | Specifications | Remark |
| Overall dimensions | 4700mm×2060mm×2100mm | |
| Wieght | ≤1.5t | |
| Total power | 32kW | |
| Dredging depth | 3.5m | |
| Dredging width | 800mm | |
| Tramping distances | ≤100m | |
| Dredging pump flow | 100m3/h | |
| Dredging pump lifting distance | 5m | |
| Travel speed on the land | 6km/h | |
| Travel speed in water | 7.8km/h | |
| Grade ability- Transversal | 25° | |
| Grade ability-Longitudinal | 30° | |
| Track width | 530mm | Contitech layered fabric core wear-resistant band |
| Buoyancy tank | L x W x H4000 x 500 x 600 mm | Made from Aluminum， total volume of two tanks: 2.2 M3 |
| Blade | L x H x Thinkness530 x 90 x 25 mm | high molecular material |
| Ground pressure of buoyancy tank | 5KPa ( for swamp) | Track ground length: 3000 mm |
| Ground pressure of blade | 150KPa，( for swamp) | 4 blades for 2 sides |
| Seat for operator | Adjustable, foldable, electricity heating | Grammer brand |
| Electric system | Generator: 12V，40ABattery：45Ah | CAN- Bus-control |
| Hydraulic system | System pressure:200Bar;Flow:130L/min | Loading sensitive system |
Balance regulation system design. The cockpit and upper powertrain are designed to move forward and backward and adjust the structure through hydraulic control, which can be used as a balance ballast weight during water operation to ensure the role of water balance of ships in different working conditions

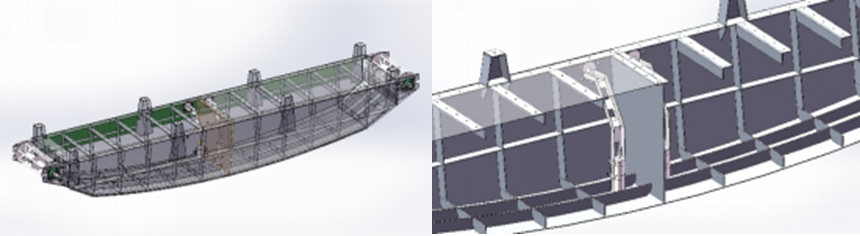

Light full arc curved floating tank design. Nautical aluminum made floating tank structure, innovative structure light weight, taking into account the hull and track frame functions. The design of subdivision structure and redundant drainage system ensure the safety of hull operation. Through the design and research, it adopts the form of full-arc curved floating tank bottom plate, which effectively improves the performance of walking, turning and anti-collapse of the vehicle, and effectively improves the ability of wading and climbing ice of the vehicle.

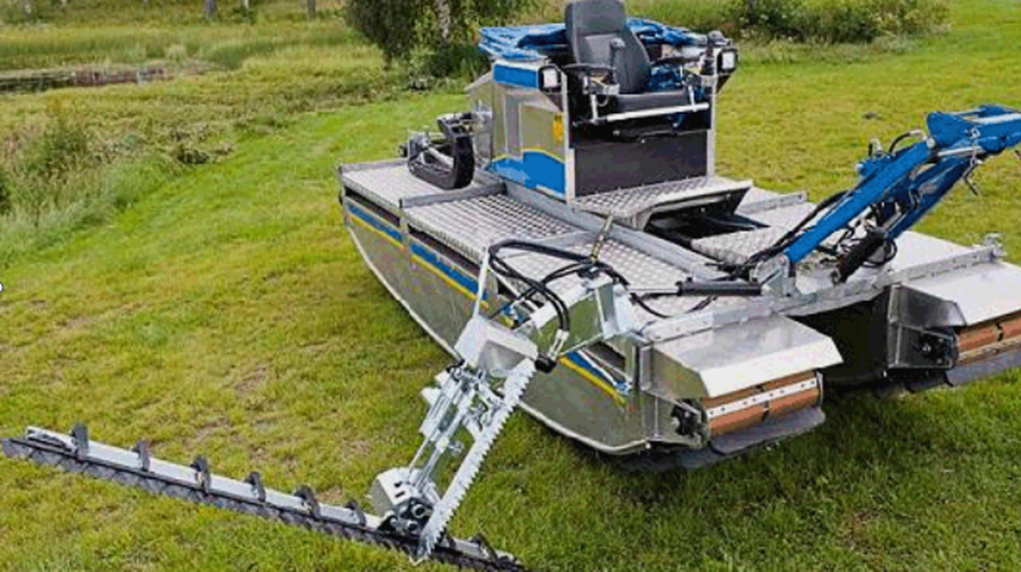

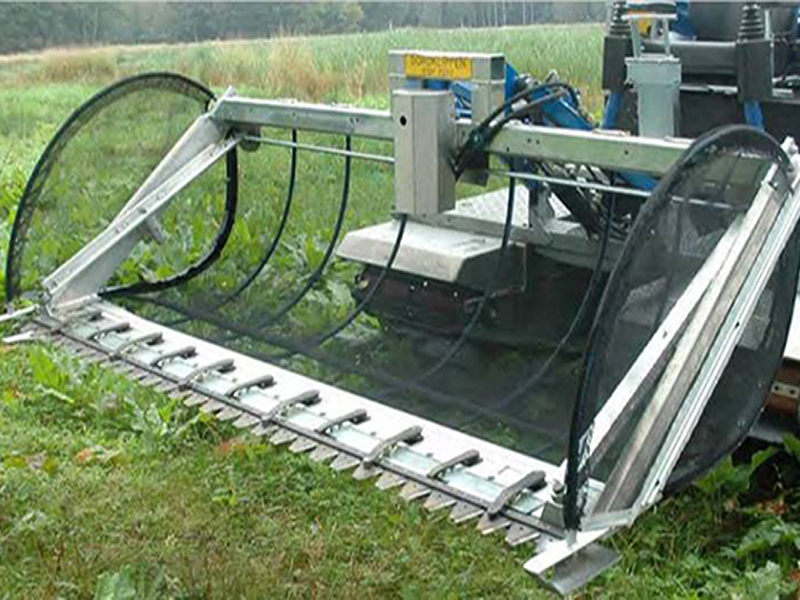

This cutting machine is mounted on the side of the amphibious operation equipment, which is easy to adjust the Angle of the cutting machine, suitable for work along the river and waterway. The cutter is double-acting mode, and no water lubrication is required when the cutter is working. Equipped with a stone removal system, automatically stop cutting when hitting hard objects to protect the blade. With hydraulic drive side arm, connected with the telescopic swing arm to increase the working range.

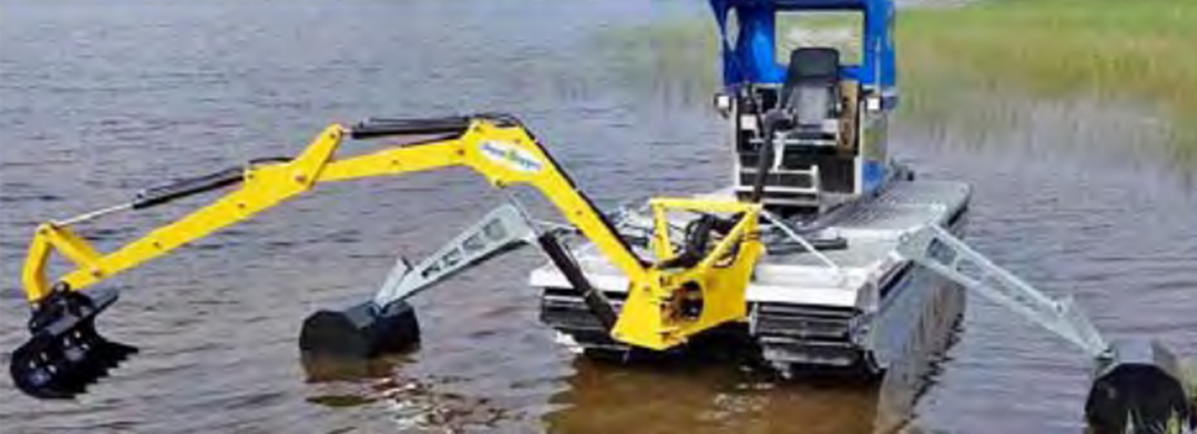

The multifunctional excavator is an integrated system that can be installed with multiple utility tools. The excavating arm is made of high-strength steel with an integrated bracket that can be used to tie dredging pipes and other hydraulic lines. The excavator has been optimized to the greatest extent in terms of lifting capacity, digging depth and scope. The hydraulic cylinder is driven by two digging arms for reliable power transmission and is equipped with a semi-automated support for quick tool changes.
